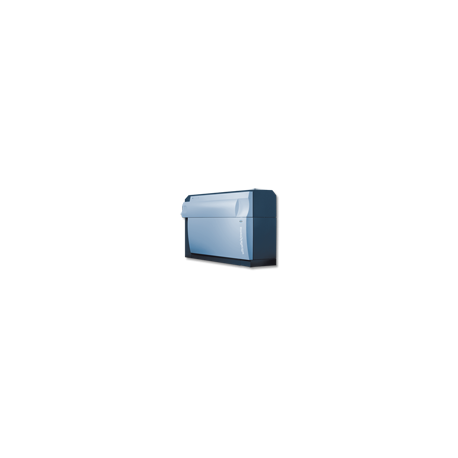

MALDI TOF/TOF, ultrafleXtreme (BRUKER)
The enhanced ultrafleXtreme: the industry standard MALDI-TOF/TOF mass spectrometer with 5 GS/s 10 bit digitizer for enhanced resolution and dynamic range
Fast and direct results for efficient research
- Bruker's patented innovative smartbeam-II laser enables high data acquisition speed in both MS and MS/MS at full systems performance. The well-established proprietary smartbeam-II laser provides unprecedented analytical and matrix flexibility in workflows from protein tissue imaging, intact proteins analysis, glycoproteomics, biologics or oligo QC, polymer analysis, to LC-MALDI proteomics and TLC-MALDI – all fully enabled at 1-2000 Hz repetition rates.
- Broadband mass resolving power up to 40,000 enables precision proteomics via Bruker’s unique PAN technology for highest mass resolution across a very broad mass range, not just at a selected optimum.
- The FlashDetector combined with a 5 GS/s 10-bit digitizer and latest advances in electronics provide mass resolving power up to 40,000 and 1 ppm mass accuracy for highest confidence.
- The IR-laser based self-cleaning ion source ensures robust, long-term highest-performance operation. Very long MALDI laser lifetime in combination with automated source cleaning in just minutes leads to high uptime and low maintenance costs.
- Typically, full MS/MS data sets can be acquired with up to 1000 Hz laser repetition rate from low fmol levels within seconds. The Bruker bioinformatics software is perfectly adapted to analyze and visualize the match between the raw spectra and annotated peptide and protein structures.
